MacPro SSD Fitting

Two years ago I added a SSD drive to my office MacPro. At that time I found a very useful blog post showing how to do it. I’ve just acquired another SSD drive and can no longer find the blog post. So, I’m posting what I did just to help anyone else out there who can’t find the original post about adding a 2.5 inch SSD drive to a MacPro 1,1 drive drawer/tray/sled without using an adaptor.

Things you’ll need:

  • 2.5 inch SSD
  • CD/DVD
  • A drive tray/drawer/sled.
  • Tape
  • Scissors
  • Pen

2014-03-19 10.09.23

Place the sled on top of the CD/DVD and draw along the edges with a pen

2014-03-19 10.09.36

You will have something like this.

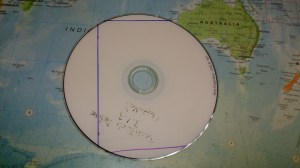

2014-03-19 10.10.34

Cut off the sides of the CD/DVD with the scissors.

2014-03-19 10.12.02

Tape the CD to the sled and then tape the SSD on top of that. There needs to be about a 20mm overhang, and also the SSD needs to be 2mm in from the edge.

2014-03-19 10.18.32

With the scissors cut through any tape that is overhanging underneath. This will allow the sled to side back in to the Mac.

2014-03-19 10.19.24

Slide the sled back in and the SATA connector should all line up.

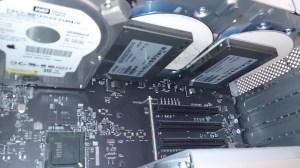

2014-03-19 10.21.06

Job done.

Coffee filter basket funnel – Take 1

After seeing something similar used at Nude Espresso, I’ve been looking to buy a funnel type thing to help stop getting coffee grounds everywhere when filling the filter basket.

This is take one of producing the part. There is some work still to do. Mainly reducing the size and correcting the dimensions.

This is it. Designed in Sketchup and printed on Ryan’s Ultimaker. This is a draft print just to see if the design was anywhere close.  The first print took 2 hours.

2014-03-27 09.17.10 2014-03-27 09.17.19

The idea is for the filter funnel to sit on top of the basket so that when I add the coffee grounds, they stay in the basket ready for tamping. It is a bit too high.  The next revision I’ll half the height.

2014-03-27 09.17.33

Once the coffee has been added, it looks like the diameter is too wide. I designed it to sit just outside the lip of the basket. I need to alter this to sit inside the lip as I still have coffee spillage.

2014-03-27 09.21.19

Some minor coffee loss.

2014-03-27 09.22.14

The finished product. One tasty americano.

2014-03-27 09.25.14
